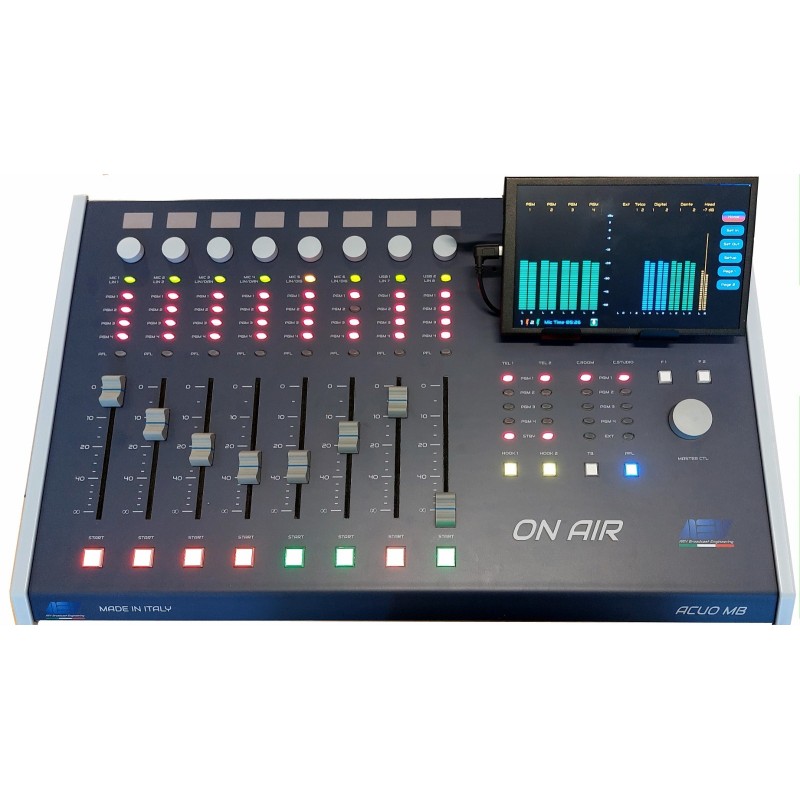

ACUO MB is the lastest OnAir broadcast digital expandible audio console designed in AEV Broadcast powered by DSP
It got all the modern features you need, the Main console supply 22 inputs, in eight faders, six microphone inputs, eight balanced analog line input, two AES/EBU digital input, two Dante inputs (optional) two telco/telephone interface. Acuo MB offers you all the functionality expected from this ultimate console like mixing and monitoring facilities, logic controls, TCP/IP connection.

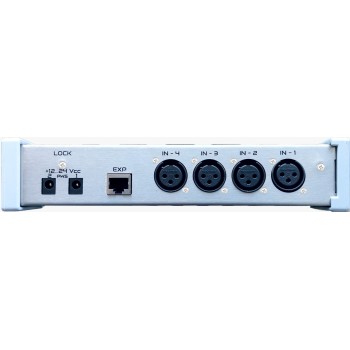

To the Main Unit can be add until two Expansion units via ethernet cable, with four channels each, so we can supply the configuration with 8, 12 and 16 faders.
ACUO MB has a modern low profile design and intuitive control surface that will be immediately familiar to all users.

INPUT
– 6 Mic transformer balanced inputs
– 2 Digital AES/EBU stereo inputs
– 2 Digital USB built-in audio card with I/O stereo interface
– 2 Digital Dante inputs (op»onal)
– 8 Balanced analog stereo inputs

OUTPUT
– PGM1 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM2 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM3 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM4 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– USB 1 audio channel
– USB 2 audio channel
– Digital 1 AES/EBU
– Digital 2 AES/EBU
– Telco 1 & 2 CleanFeed Analog (24 Bit D/A) and Digital AES/EBU (48 KHz No-Sync)

CHANNEL FUNCTIONS
– Level adjustment
– Phantom Power (for Mic Input only)
– Voice Processor (Op»onal)
– Busses assignement (PGM1-PGM2-PGM3-PGM4-DIG1-DIG2-Dante1-Dante2-Telco 1 and 2)
– Mode Selector (Le@/Right/Stereo/Mono)
– Balance
– Phase Reverse
– Control Room and Studio Mute
– Timer Restart
– Tally 1 and 2 Logic
– Intercom & talkback mode
– Start/Stop Control Logic

MONITORING
– Level Control of the Headphones, Control room and Studio
– CUE Speaker Built-in CUE Speaker (with monitor selector)
– Level Meters on 8” Color Display
