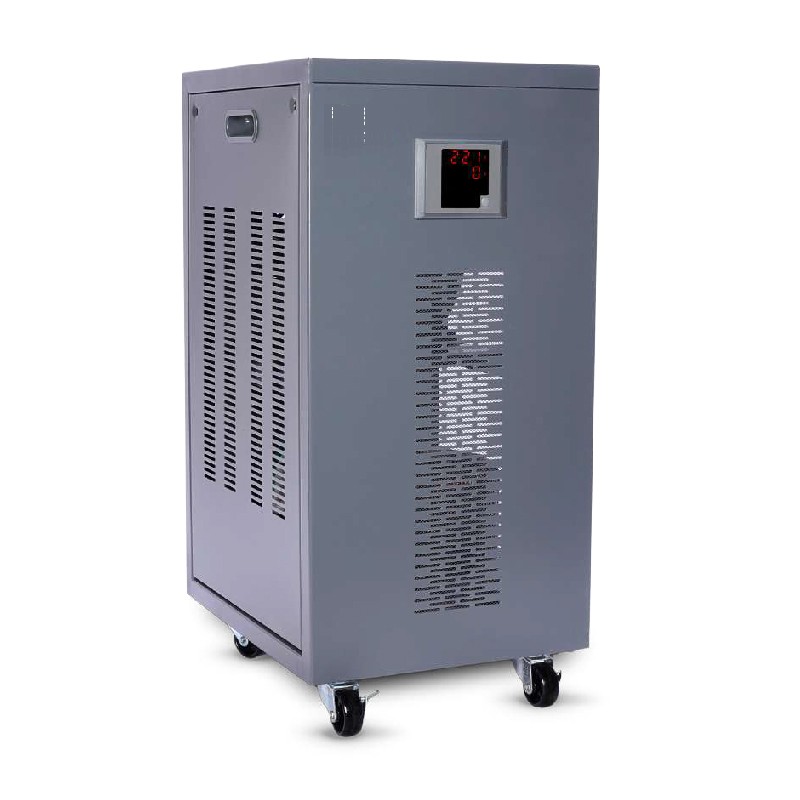

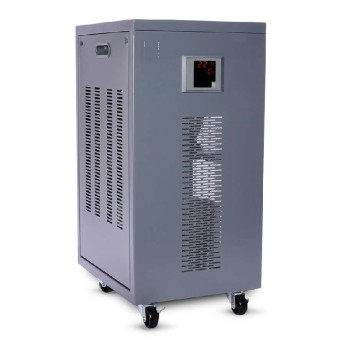

copy of Regulador de Voltaje 5Kva Monofasico
$1,190,000
| Topology | |
| Power VA/Watts | 10000VA / 9000W |
| Product Code | EVMONO10KVA |
| Power Factor | 0,9 |
| Format | Tower |
| Panel | LCD-DIGITAL |
PROHIBITED
| Phase | 1F+N+GND |
| Voltage Range | 220V+-20% |
EXIT
| Voltage | 220V |
| Voltage Regulation | <±3% |
| Frequency Range | 50/60 Hz |
| Over Voltage Protection | Output voltage 250V±5V |
| Low Voltage Protection | Output voltage 183V±5V |
OTHERS
| Input/Output Connection | Terminal block / Terminal strip |
| Waveform Distortion | Without Distortion |
| Response Time | <1s (±10% variation) |
| Insulation Resistance | <5Ω |
| Overvoltage protection | 245 +- 5V |
| Other protections | Protections against overload, overcurrent, undervoltage and short circuit |
| Temperature | -10ºC – 40ºC |
| Humidity | <95% |
| Job | Continuous |
| Altitude | <1000m |
| Dimension(AxLxAlto)mm | 41x24x39 |
| Net Weight (kg) | 23,5 |
| Safety or EMC | THIS |
5 OTHER PRODUCTS IN THE SAME CATEGORY
SKU: EVMONO10KVA
-Monophasic (1:1)
-Potency: 10.000VA / 9.000W
-Power Factor 0.9
-Wide voltage range, high reliability
-96% eficiency
