7/16 Din connector for 1/2 Heliax cable

$23,800
20 Items
Qty

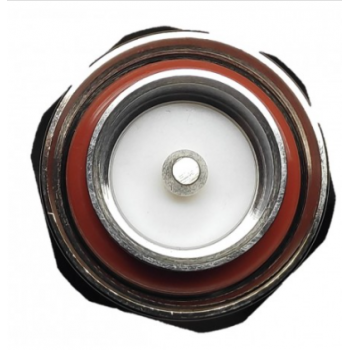

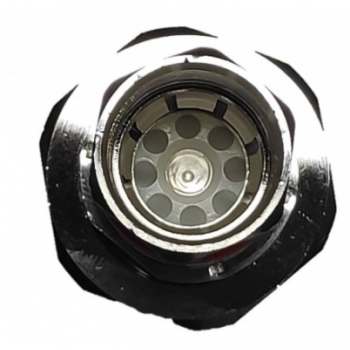

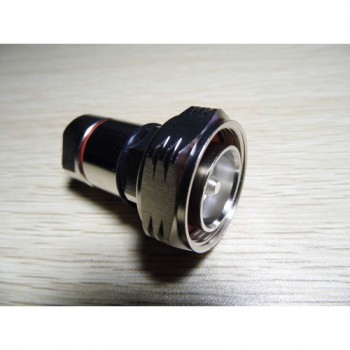

7/16 Din connector for 1/2 Heliax cable

7/16 male connector for 1/2 "coaxial cable Rigid LOW PIM3

 Short Description: 7/16 (m) 1/2 "Rigid

Model: DIN-7 / 16M-1/2 "F

Interface: IEC 60169-4 / IEC60169-16

Temperature range: - 55ºC to + 165ºC

Frequency Range: 0.1 - 6 GHz

Impedance: 50 Ohm

Shielding: <-165 dB

Insertion loss: VSWR (dB)

    0 <f 1.0 GHz: 1.02 (40.0)

    1.0 <f 2.7 GHz: 1.03 (36.6)

    2.7 <f 3.7 GHz: 1.06 (30.7)

Intermodulation @ PIM3: <-165 dBc LOW PIM3

Working voltage: 4,000 V rms / 50 Hz

Contact resistance:

   (Outside contact) <0.2mOhm (Center contact) <0.4mOhm

Dielectric resistance: 10,000 Mega Ohm. min. (initial)

Quality: LOW PIM3 Silver contact

Tightness: IP-68

* For assembly, the cable must be stripped to insert the live in the tip and on the other part of the connector it is fixed by means of thread pressure, finally screw it into the desired equipment or to the corresponding 7/16 female connector.
